360 Degree Panoramic Camera 4 Channel HD Car 3D Bird View AVM Camera Fit For Car Camera Vehicle

Type : 360 Degree Round View System

Lens Angle : 360 Degree View

Car Make : Universal, for any car

Voltage : DC 12V-24V

Waterproof : IP69K

Brand Name : Vanwin Tracking

Model Number : VW360

Certification : CE/FCC/RoHS

Place of Origin : Shenzhen, China

MOQ : 10pcs

Price : negotiated

Supply Ability : 5,000pcs per month;

Delivery Time : 1-2 days for samples, 3-10 days for large orders

Packaging Details : Neutral carton box package by default;

Feature : Safe Parking

Payment Terms : Western Union,T/T,Paypal

TV system : PAL or NTSC

Warranty : 18 months

Contact Now

360 Degree Panoramic Camera 4 Channel HD Car 3D Bird View AVM Camera
This advanced 4-channel panoramic camera system provides a comprehensive 360-degree bird's eye view of your vehicle surroundings, enhancing safety and security during driving and parking operations.
Important Note: This product does not include the display. It features an AV OUT connector that can be connected to your DVD player, navigation system, or monitor with AV IN connector.
Main Features

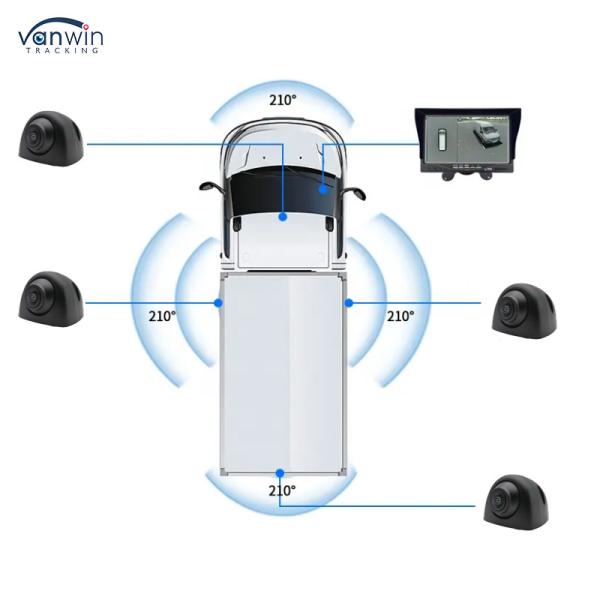

  • Perfect bird's eye view (aerial view, round view, or panoramic view) of car surroundings
  • 4-channel recording from 4 cameras
  • HD chip lens with night vision function and waterproof design
  • Integrated driving assistance and tachograph system
  • More intuitive security compared to audio reversing radar
  • Enhanced safety for traffic and parking situations
  • 360-degree panoramic imaging with four HD cameras
Technical Specifications
Camera Specifications
Sensor Size 1/3" Color Sensor
Signal to Noise Ratio >60dB
Minimum Illumination 0.001LUX
Dynamic Range 82dB
Video Output AHD720P/1080P
Waterproof Level IP69K
Perspective Vertical 130°, Level 180°-230°
Working Voltage 3.5-5.5V
Working Current Approximately 140mA

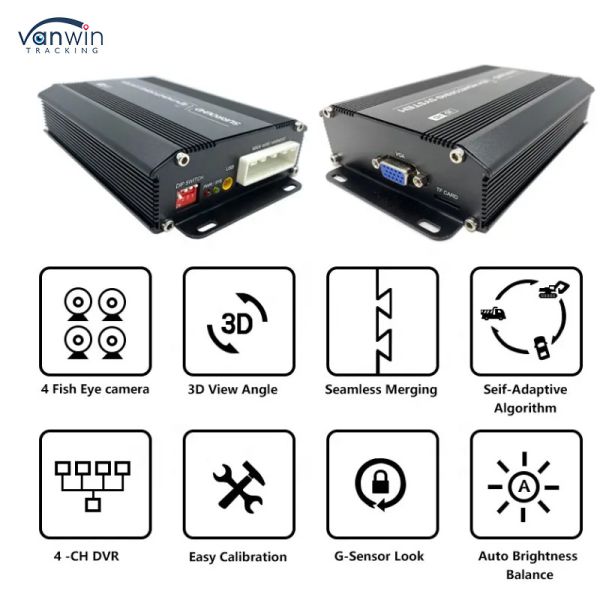

Host Specifications
CPU RK3566 1.8GHz
ROM DDR3 4Gb
RAM 512MB
Operating Voltage Range 8~16V
Working Current <500mA
Standby Current <5mA
Operating Temperature Range -20℃〜75℃
Storage Temperature Range -30℃〜80℃
Operating Humidity Range 40%〜80%
Start Time <7S
Product Details
360 Degree Panoramic Camera 4 Channel HD Car 3D Bird View AVM Camera Fit For Car Camera Vehicle 360 Degree Panoramic Camera 4 Channel HD Car 3D Bird View AVM Camera Fit For Car Camera Vehicle
Applications

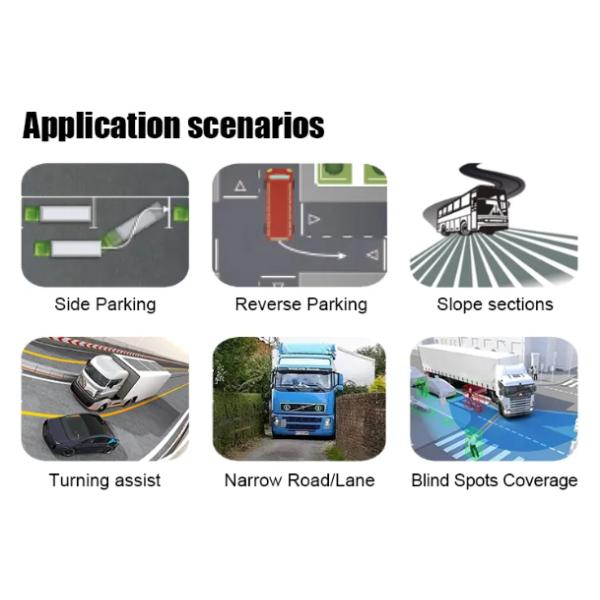

The 360 Full View Parking Visual System is designed for various vehicle types including buses, trucks, trains, forklifts, and other vehicles requiring comprehensive security video surveillance.
360 Degree Panoramic Camera 4 Channel HD Car 3D Bird View AVM Camera Fit For Car Camera Vehicle 360 Degree Panoramic Camera 4 Channel HD Car 3D Bird View AVM Camera Fit For Car Camera Vehicle
Why Choose Our Product
  • Professional Expertise: We understand customer needs and prioritize customer interests, providing the best solutions with sincere, kind, and enthusiastic service that delivers value beyond the products themselves.
  • Trustworthy Experience: With 15 years in vehicle surveillance systems, we have consistently earned the trust of customers of all sizes.
  • Product Confidence: As pioneers in AI integrated intelligent algorithm car DVR development, we offer unique product customization, advanced R&D technology, and hardware private model development tailored to specific customer environments.
  • Responsive Service: We provide quick responses and timely after-sales service, actively communicating with customers about details and delivering additional value through cost savings, customized trading, and zero-risk trust cooperation.
